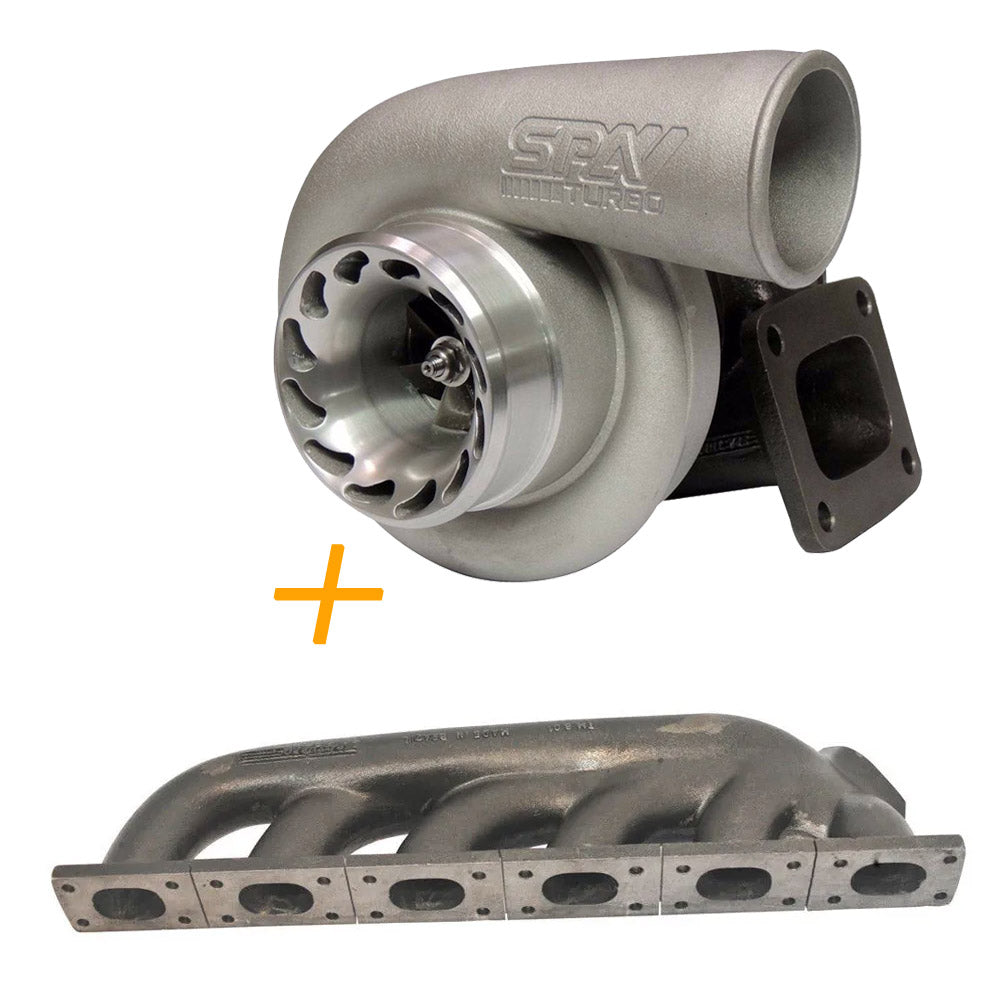

BMW E36 S50 M5X turbo manifold + SPA 27 Turbocharger T4 .68
Usually ships within 24 hours
Regular price
$999.90
Regular price
$1,049.90
Sale
Sale price
$999.90
Couldn't load pickup availability
SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
The TMB01 manifold is a GGG40 cast manifold, with a T3 or T4 turbocharger Flange, the manifold requires a wastegate mount (#TMSPT02 - not included), and for large intake tubing, SPA Turbo recommends an special engine mount (TMSPT05 - not included).
The application is BMW E36 and E46 body M50 / M50 TU / M52 / M54 / S50 / S52 engines.
Will NOT Fit RHD cars.
The TMB01 manifold is a GGG40 cast manifold, with a T3 or T4 turbocharger Flange, the manifold requires a wastegate mount (#TMSPT02 - not included), and for large intake tubing, SPA Turbo recommends an special engine mount (TMSPT05 - not included).
The application is BMW E36 and E46 body M50 / M50 TU / M52 / M54 / S50 / S52 engines.
Will NOT Fit RHD cars.
SPA 27 Turbocharger
T3/T4 turbocharger 2.0 - 4.5L displacement
350-600hp range
Compressor wheel: 58.75mmx87.8mm exclusively developed by SPA Turbo billet aluminum with EXTENDED TIP concept, which increases the maximum flow of the compressor, with minimal increase of mass, guaranteeing greater efficiency and flow in relation to the competitors of the market.
Turbine wheel: 64mmx76.1mm.
Compressor housing: .70 anti-surge. 4" inlet - 2 1/2" outlet. Special design Turbo SPA that optimizes volume and airflow in conjunction with billet compressor wheel.
Turbine housing: T4 .68
Lubrication: oil.
Cooling: water and oil.
Journal bearings (360 degree thrust bearings).
Turbo flange threads: M10x1.5
Wastegate flange (if applicable) threads: M8x1.25
